Hayden Platinum

Hayden Platinum Central Vacuum Unit

Performance. Strength. Durability.

Hayden’s Platinum central vacuums provide efficient and quiet motors for maximum power and durability.

Find out more about Hepa filtration

The HEPA filtration technology consists of high efficiency filters which provide 99.5% of filtration for particles up to 0.3µm. Hayden vacuums enclose dust using its high suction power. Equipped with Hepa filtration, these vacuum systems allow you to enjoy a healthier environment.

Hayden and versatility go hand in hand!

Some of the Hayden central vacuum systems are compatible with the Retraflex retractable hose that automatically store itself inside the walls. In addition, every product can be used with many different accessories which will ease home maintenance and will adapt to your lifestyle.

Discover the Accessories section.

Technical specifications

Three hybrid filtration models are available to meet the needs of the most demanding customers in terms of quality.

Scroll to the right to see all the models

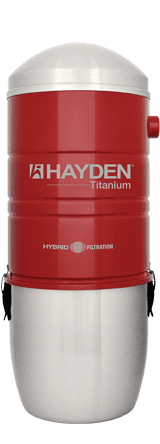

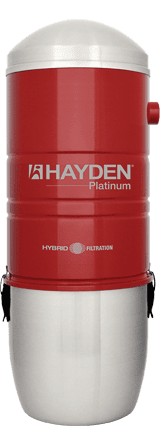

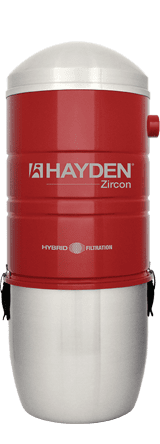

  Central Vacuum Hayden Zircon Central Vacuum Hayden Titanium Central Vacuum Hayden Platinum
Technical Data Zircon Titanium Platinum
Airwatts 600 AW 650 AW 655 AW
Water Lift (H2O) 120” · 3048 mm 143” · 3634 mm 157.1” · 3991 mm
Air flow 117 CFM
199 CMH 		130 CFM
221 CMH 		112 CFM
191 CMH
MAX amps 12 A 15 A 14,6 A
Voltage 120 V 120 V 120 V
Number of motors 1 1 1
Turbines per motor 1 2 3
Bag capacity 16 l · 3.6 gal US 22 l · 5 gal US 22 l · 5 gal US
Canister capacity 19.7 l · 3.8 gal US 19.7 l · 3.8 gal US 19.7 l · 3.8 gal US
Weight 30.8 lb · 14 kg 30.8 lb · 14 kg 31.8 lb · 14.4 kg
Height 32” · 81.2 cm 32” · 81.2 cm 35.3” · 88.9 cm
Diameter 12.3” · 30.4 cm 12.3” · 30.4 cm 12.3” · 30.4 cm
Filtration Hybrid filtration
Part warranty† 10 years*
Labor warranty† 3 years
Cleaning surface Up to 3500 sq. ft. Up to 7000 sq. ft. Up to 10 000 sq. ft.
Product Code AHAYDEN1A AHAYDEN2A AHAYDEN3A

†Domestic use only. See details in store or online.
*Parts: 5 years 100% + 5 years 50%
